Good price online

products details

Home > Products >
Beam Detector
>
LPCB Certified TX7130 Reflective Beam Smoke Detector with 1000 m² Coverage for Industrial Fire Detection
All Category

Conventional Fire Alarm System

Addressable Fire Alarm System

Gas Extinguishing System

Beam Detector

Fire Alarm Flame Detector

4 Wire Smoke Detector

Household Gas Detector

Standalone Smoke Detector
Contact Us
Ms. Claire
Claire.tian@xinheantech.com
+8615986702194
Contact Now
LPCB Certified TX7130 Reflective Beam Smoke Detector with 1000 m² Coverage for Industrial Fire Detection
  • name
  • name
  • name

LPCB Certified TX7130 Reflective Beam Smoke Detector with 1000 m² Coverage for Industrial Fire Detection

Brand Name: TANDA
Model Number: TX7130
MOQ: 1
Price: negotiable
Packaging Details: 61*54*31CM
Payment Terms: T/T,Western Union,
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
LPCB
Document:
Product Brochure PDF
Certifications:
LPCB
Type:
Infrared Beam Detector
Humidity Range:
0-95% Non-condensing
Applicaiton:
Conventional/addressable Fire Alarm System
Power Supply:
DC24V
Output:
Realy Output: 1A DC24V
Installation:
Ceiling Or Wall Mount
Transport Package:
Carton
Operating Temperature:
-10 To 50 Degrees Celsius
Path Length:
5-100m
Detector Type:
Reflective Beam Smoke Detector
Supply Ability:
1000PCS/Month
Highlight:

LPCB Certified Beam Smoke Detector

,

1000 m² Coverage Reflective Beam Smoke Detector

,

Industrial Environments Optical Beam Smoke Detector

Product Description
TX7130 LPCB Certified Reflective Beam Smoke Detector
High-performance fire detection system providing up to 1000 m² coverage for sensitive fire detection in industrial environments.
LPCB Certified Reflective Optical Beam Smoke Detector - Designed for reliable fire detection in challenging industrial settings.

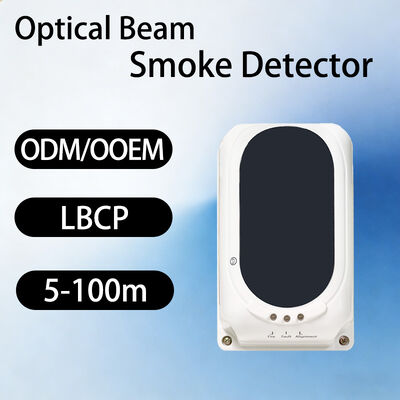

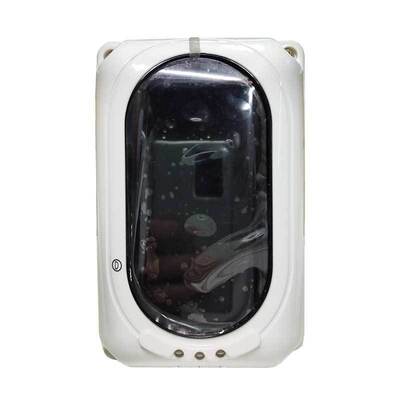

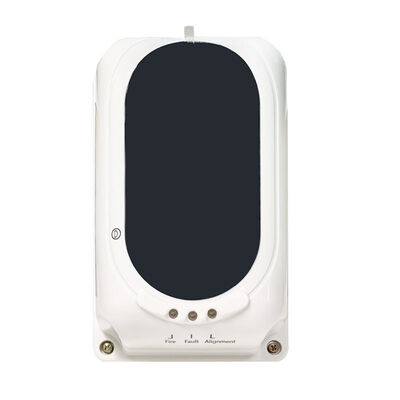

TX7130 Reflective Beam Smoke Detector unit showing front panel and design
Product Overview
The TX7130 reflective optical beam smoke detector integrates both light transmitter and detector in a single unit. The system creates a light path by reflecting emitted light off a retro-reflector positioned opposite the detector, ensuring minimal light scattering.
During a fire event, smoke particles within the beam path absorb or scatter light, reducing the received signal and increasing optical obscuration. The detector's processor analyzes these signals using pre-programmed algorithms to determine fire conditions, activating corresponding relays and LED indicators when fire is detected.
TX7130 beam smoke detector installation and operational diagram
Technical Specifications
Operating Voltage20 V to 28 V DC
Current ParametersStandby: 23mA, Commission: 56mA, Alarm: 33mA
Beam Sensor SensitivityLevel 1: 2.6 dB (High), Level 2: 3.8 dB (Medium), Level 3: 5.8 dB (Low)
Beam Pathway LengthSpan 1: 8-20m (Limited), Span 2: 20-40m (Short), Span 3: 40-70m (Normal), Span 4: 70-100m (Long)
Beam Path Angle±0.4º Directional
Alignment GuideLaser Beam Pointer
Digital Display GuideNixie Tube
LED Indicator GuideRed: Fire, Yellow: Fault, Green: Alignment
Reset TimeLess than 2 Seconds
Relay Capacity (Fire & Fault)Normally Open & Close / 2.0 A; 30 VDC
Material / ColorABS / White
Dimensions190.87mm (L) × 126.87mm (W) × 91.96mm (H)
Weight440g (0.130 Kg with base)
Operating Temperature-10°C to +50°C
Ingress Protection RatingIP30 (IP66 with glue seal for permanent fixing)
Humidity0 to 95% Relative Humidity, Non-condensing
Product Range
  • Conventional Fire Alarm System
  • Addressable Fire Alarm System
  • Gas Extinguishing Control System
  • Beam Detector
  • 4-Wire Smoke Detectors with Relay Output
  • 2-Wire Conventional Smoke and Heat Detectors
  • Explosion-Proof Flame Detector for Fire Alarm System
  • Standalone Smoke Detectors and Combustible Gas Detector
Service & Support
  • OEM & ODM Services
  • Technical Support and After-Sales Service
  • 1 Year Warranty
  • 15 Working Days Standard Lead Time
  • Sample Orders Welcome
