Product Description

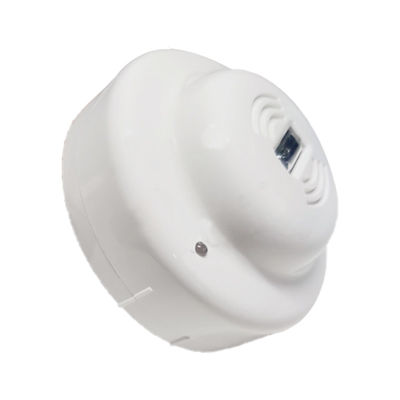

DC24V Ultraviolet Flame Detector With Relay Output And Detection For Fire Alarm System

Introduction

The device is an Ultraviolet-only flame detector designed to detect fires and provide alarm outputs directly from the

detector while maintaining false alarm immunity. It detects in the ultraviolet (UV) spectral range for optimized speed of response. It is fast and capable to detecting the ultraviolet (UV) rays emitted by a burning substance and is used in high hazard applications such as petrochemical plants, munitions factories and other areas where flammable or explosive

liquids or solids are handled or stored. The flame sensor adopts an ultraviolet photosensitive tube, with qualities of highly sensitive, reliable, dust-resistant, corrosion proof and moisture-resistant, therefore is not sensitive in sunlight, dust, oil, tolerance of fume, and humidity. Set in a standard calibration to detect a flames at a distance of 25 meters, which flame created by 2Kg ethanol in a Container of Base 33cmX33cm, Height 5cm

Specification

Operating Voltage Range: 12 to 28 VDC Volts

Standby Current: ≤10 mA @ 24 VDC

Alarm Current ≤30 mA @ 24 VDC

Spectrum: 180~290nm

Detection Angle: 120 degree

Detection Sensitivity: Grade I, 25m@flame (Container 33cmX33cm,Height 5cm with 2Kg ethanol )

Relay Contact Load: 1A@DC24V

Normal Status: LED blinking in 5 seconds interval

Alarm Status: LED lit steady

Protection rating: IP 21

Operating Humidity Range: 10% to 93% Relative Humidity, Non-condensing

Operating Temperature Range: -20°C to 55°C

Height: 45 mm installed in Base

Diameter: 103 mm

Weight: 153g

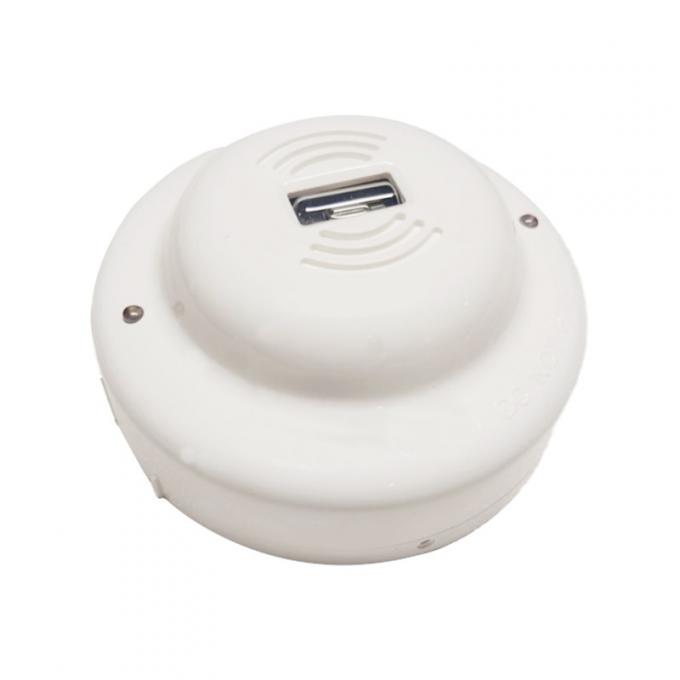

Ultroviolet Flame Detector with Relay Output for Fire Alarm System

Installation

NOTE: All wiring must conform to applicable local codes, ordinances, and regulations. Mounting Indoor Wall or Ceiling Products.

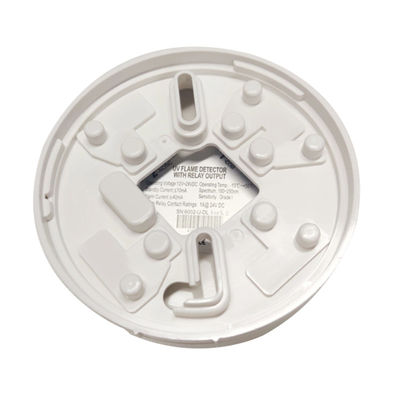

1. Attach mounting base to ceiling or wall.

2. Connect field wiring to terminals:

Terminal 1: Relay Output -COM (ZONE+)

Terminal 2: Relay Output - NO/NC (ZONE-)

Terminal 3: DC Power -

Terminal 4: DC Power +

3. To attach product to mounting base.

4. Secure product by tightening the two mounting screws in the front of the product housing.

5. The detector can be connected with Security alarm panel as Figure3. Relay output signal can be changed from Normal Close (NC) to Normal Open (NO) by Jump JP1 on the PCB board.

6. The detector can be connected with conventional alarm panel as Figure 4. One 4.7K ohm resistor should be connected as End of Line (EOL) resistor at the last detector.

7. After the installation, power on the detector, use lighter or candle to test the detector within 3 meters.

WARNIING:

Not to install flame detector near the below subjects:

1. Halogen lamp, Electric discharge lamp, ultraviolet ray lamp.

2. Welding spark, Electric spark

3. Heavy current magnetic field, thunder discharge.

4. Direct sunlight.

5.Ultra violet radiation subjects
The UV flame detector can not detect the following:

1. The flame behind the glass or transparent resin.

2. Lighted cigarette.

3. Burning charcoal and coal cakes.

4. Burning material without flame.
