Good price online

products details

Home > Products >
Fire Alarm Flame Detector
>

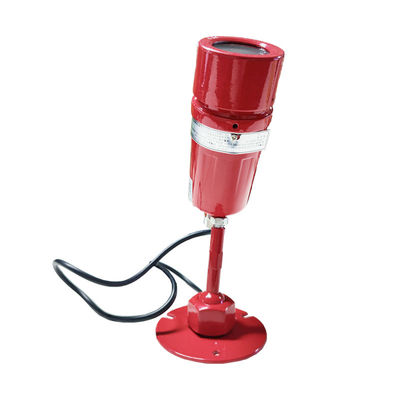

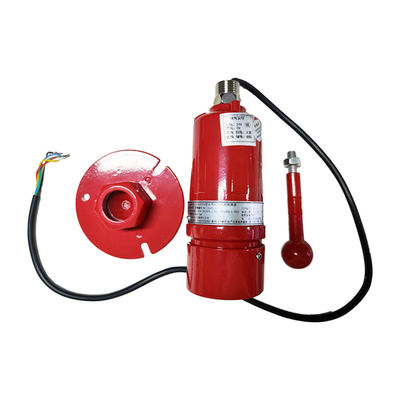

2 Band Infrared Flame Detector
All Category

Conventional Fire Alarm System

Addressable Fire Alarm System

Gas Extinguishing System

Beam Detector

Fire Alarm Flame Detector

4 Wire Smoke Detector

Household Gas Detector

Standalone Smoke Detector
Contact Us
Ms. Claire
Claire.tian@xinheantech.com
+8615986702194
Contact Now
2 Band Infrared Flame Detector
  • name
  • name
  • name

2 Band Infrared Flame Detector

Brand Name: XHA
Model Number: XHA101I
MOQ: 1PCS
Price: negotiable
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Document:
Product Brochure PDF
Infrared Sensor Probe Type:
2 Bands Infrared Sensor
Working Voltage:
DC24V
Output:
Relay Output
Supply Ability:
500/Month
Respond Time:
<10S
Types Of Smoke Detectors:
Explosion-Proof Infrared Flame Detector
Supply Ability:
500pcs/month
Highlight:

Explosion Proof Infrared Flame Detector

,

DC24V Infrared Flame Detector

,

2 Band Infrared Flame Detector

Product Description
DC24V Explosion-Proof 2 Band Infrared Flame Detector With Relay Output For Fire Alarm System

2 Band Infrared Flame Detector 0

Introduction

The Exposion-proof infared flame detector adopts high-performance sensor (infrared wavelength 2.2μm/3.8μm/4.4μm/5.3μm, ultraviolet wavelength 185 ~ 260nm), infrared wavelength 4.4μm sensor has high sensitivity to carbon dioxide generated by hydrocarbon combustion. The uv sensor is very sensitive to the ultraviolet radiation emitted by the flame. Other sensors filter the ambient light and ambient thermal radiation infection to better avoid the interference of the ambient environment on the detection results. Microcontroller technology, combined with sophisticated SMD process manufacturing, has good repeatability and temperature and humidity characteristics, long service life, easy to operate and other advantages.

The flame detector can not only give early alarm to organic compound combustion flame, but also has good alarm performance to inorganic combustion flame.

It's suitable for the industries of petroleum, petrochemical refineries, pipelines, chemical plant, coking plant, oil depot and gas station, CNG, LNG, wine library, spray paint room, drilling platform, city gas, boiler room, metallurgical industry, fire engineering, ships, electric power industry and so on easy to produce liquid or gas fire, smokeless fire and explosion.


Specifications


Product type:
XHA-/IR2

KF715IR3
KF715UV
KF715UV/IR2

Working voltage 19V-29VDC
Interface Φ20mm
Infrared Flame Detector Detection Angle 90 degree
Level of protection IP66
Explosion Proof Level Ex d lIC T6 Gb. Ex tD A21 IP66 T80℃
Monitor Current ≤18mA/24VDC
Alarm Current ≤32mA/24VDC
Fire response time ≤10S
Detection range Level I 25meters(33cm*33cm Ethanol fire)
Working environment humidity ≤95%RH, no condensation


Product range

Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector

Service

1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 10 working days lead time.
5. Welcome sample order.



Tags:

Explosion Proof Flame Detector

UV Flame Detector

Ultraviolet Flame Detector

Good price online

Products Details

Home > Products >
Fire Alarm Flame Detector
>
2 Band Infrared Flame Detector
All Category

Conventional Fire Alarm System

Addressable Fire Alarm System

Gas Extinguishing System

Beam Detector

Fire Alarm Flame Detector

4 Wire Smoke Detector

Household Gas Detector

Standalone Smoke Detector
2 Band Infrared Flame Detector
  • name
  • name
  • name

2 Band Infrared Flame Detector

Brand Name: XHA
Model Number: XHA101I
MOQ: 1PCS
Price: negotiable
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Brand Name:
XHA
Certification:
CE
Model Number:
XHA101I
Document:
Product Brochure PDF
Infrared Sensor Probe Type:
2 Bands Infrared Sensor
Working Voltage:
DC24V
Output:
Relay Output
Supply Ability:
500/Month
Respond Time:
<10S
Types Of Smoke Detectors:
Explosion-Proof Infrared Flame Detector
Minimum Order Quantity:
1PCS
Price:
negotiable
Delivery Time:
3 Working days
Payment Terms:
T/T, Western Union
Supply Ability:
500pcs/month
Highlight:

Explosion Proof Infrared Flame Detector

,

DC24V Infrared Flame Detector

,

2 Band Infrared Flame Detector

Product Description
DC24V Explosion-Proof 2 Band Infrared Flame Detector With Relay Output For Fire Alarm System

2 Band Infrared Flame Detector 0

Introduction

The Exposion-proof infared flame detector adopts high-performance sensor (infrared wavelength 2.2μm/3.8μm/4.4μm/5.3μm, ultraviolet wavelength 185 ~ 260nm), infrared wavelength 4.4μm sensor has high sensitivity to carbon dioxide generated by hydrocarbon combustion. The uv sensor is very sensitive to the ultraviolet radiation emitted by the flame. Other sensors filter the ambient light and ambient thermal radiation infection to better avoid the interference of the ambient environment on the detection results. Microcontroller technology, combined with sophisticated SMD process manufacturing, has good repeatability and temperature and humidity characteristics, long service life, easy to operate and other advantages.

The flame detector can not only give early alarm to organic compound combustion flame, but also has good alarm performance to inorganic combustion flame.

It's suitable for the industries of petroleum, petrochemical refineries, pipelines, chemical plant, coking plant, oil depot and gas station, CNG, LNG, wine library, spray paint room, drilling platform, city gas, boiler room, metallurgical industry, fire engineering, ships, electric power industry and so on easy to produce liquid or gas fire, smokeless fire and explosion.


Specifications


Product type:
XHA-/IR2

KF715IR3
KF715UV
KF715UV/IR2

Working voltage 19V-29VDC
Interface Φ20mm
Infrared Flame Detector Detection Angle 90 degree
Level of protection IP66
Explosion Proof Level Ex d lIC T6 Gb. Ex tD A21 IP66 T80℃
Monitor Current ≤18mA/24VDC
Alarm Current ≤32mA/24VDC
Fire response time ≤10S
Detection range Level I 25meters(33cm*33cm Ethanol fire)
Working environment humidity ≤95%RH, no condensation


Product range

Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector

Service

1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 10 working days lead time.
5. Welcome sample order.



Tags:

Explosion Proof Flame Detector

UV Flame Detector

Ultraviolet Flame Detector
